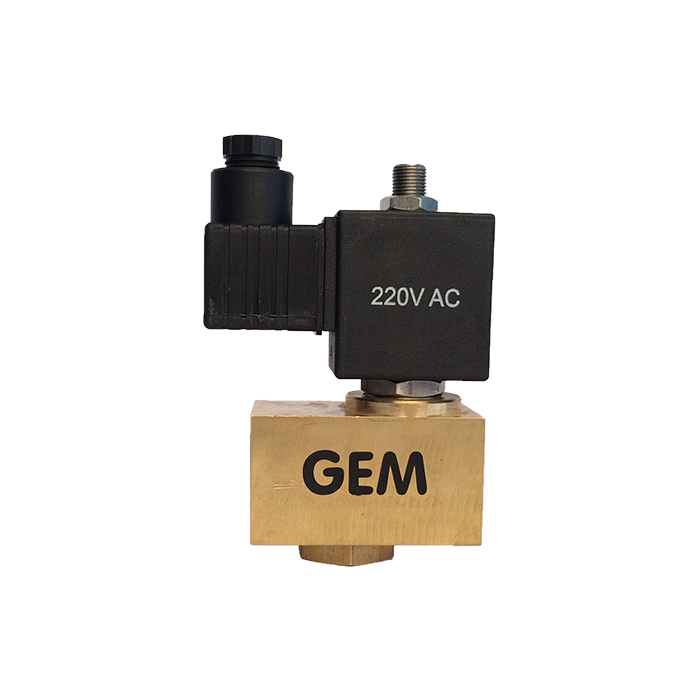

Auto Drain Valve GZ LD 7 @36 Bar Working Pressure
Login To See Price
In stock
SKU
GZ LD7
VALVE AUTO DRAIN GZLD7 FOR ALL HIGH PRESSURE DRYERS
| Models Used | Overall Dimension in mm(LxWxH) | Weight (Kg) | Packing Type | VALVE OPENING INTERVAL | VALE DISCHARGE | POWER CONSUMPTION | MAX.OPERATING TEMPERATURE | MAX.OPERATING PRESSURE | ORIFICE | INLET / OUTLET | TYPE | MAX.DISCHARGE @7bar | ELECTRICAL/POWER SUPPLY | QUALITY OF PILOT AIR |
| ALL HIGH PRESSURE DRYERS | 130X180X80 | 0.5 | Carton Box | 0.5-35min(adjustable) | 0.5-20sec(adjustable) | 10W | 90° C | 42 bar(g) | 1.6mm | 1/2" BSP(F) | DIRECT OPERATED | 60 Lit/hr | 220V±10%,50Hz,1Ph | DRY AIR |
