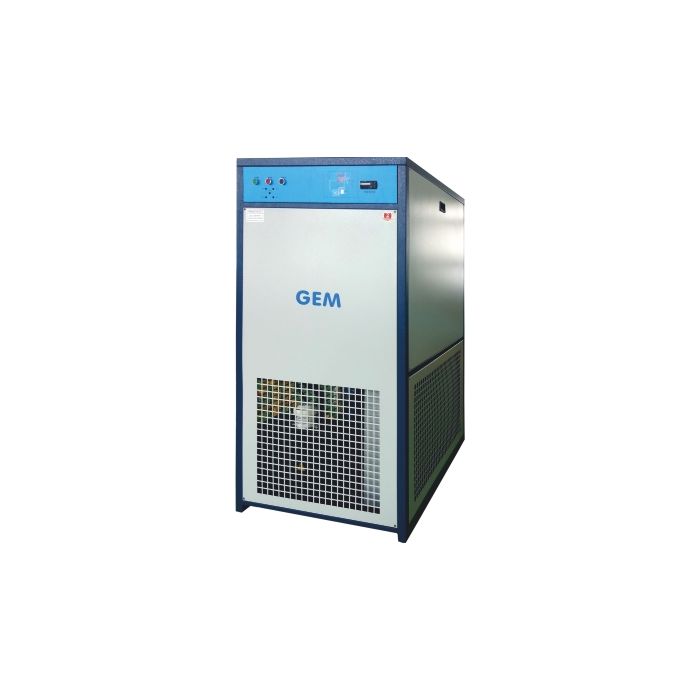

GEM Copper Coil Compressed Air Dryer 750 CFM 25 mm (3 inch) NB FLG 7-16 Bar Working Pressure, 2KD075CCW

In stock
Login To See Price

Features Of 2KD Copper Coil Series

  • Tube in tube copper heat exchanger
  • Centrifugal moisture separator built-in
  • Low pressure drop
  • Easy access to key components for service
  • Copper-Tube in tube heat exchanger
  • Built-in moisture separator
  • High efficiency refrigeration compressor
  • Dew point extremely constant functionally even under extreme working conditions (Ambient temperature 50°C)

Availability : 27 Nos Deliverable in in 2-3 weeks

Nominal Capacity Electrical Connection Air Connection Rated Power(kW) Overall Dimension in mm(LxWxH) Weight Packing Type
cfm m3/h 415V/
3ph, 50Hz
In I Out Air Cooled
750 1275 Yes 3" NB ASME Flg 4.7 900 X 1300 X 1625 350 Carton Box
