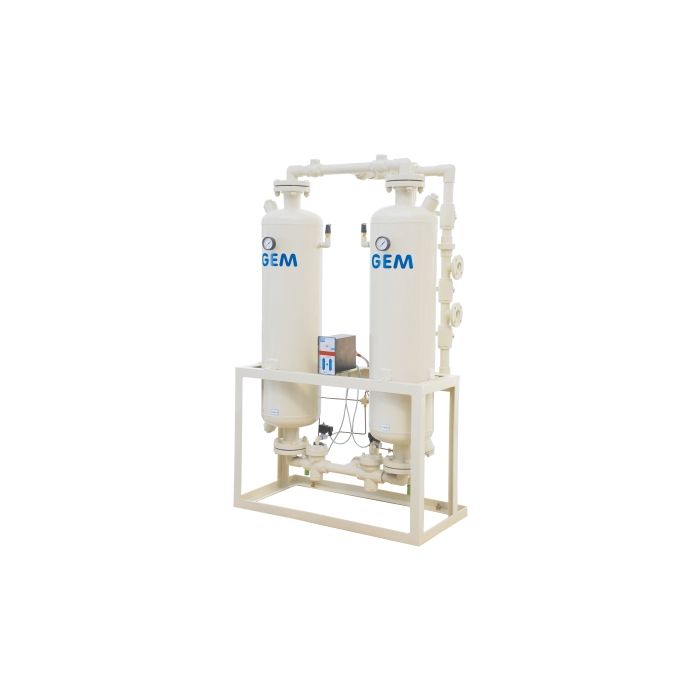

Heatless Compressed Air Dryer 175 CFM Dessicant Molecular Sieves
Login To See Price
In stock
SKU
HLN017C
Salient Features
HLN Series Heatless Air Dryers are designed and manufactured for high reliability and ease of use.
Filters
Every dryer is equipped with:
- A pre-filter
- An oil filter
- An after filter
The pre-filter is fitted with a double-seat pneumatic auto drain valve that discharges the condensate during the changeover of the tower.
| AIRFLOW | INLET / OUTLET | DIMENSIONS IN MM | DESICCANT QTY/TOWER | WEIGHT | WORKING PRESSURE | INLET TEMP | ATMOSPHERIC DEW POINT | PACKING TYPE | |
| CFM | M^3 /hr | FLG(NB) | L*B*H | KG | KG | ||||
| 175 | 298 | 1 1/2" FLG | 1100X560X1645 | 170 | 320 | 7 TO 12.5 BAR G | 42*C | -40*C , -60*C | POLY ROLL |
