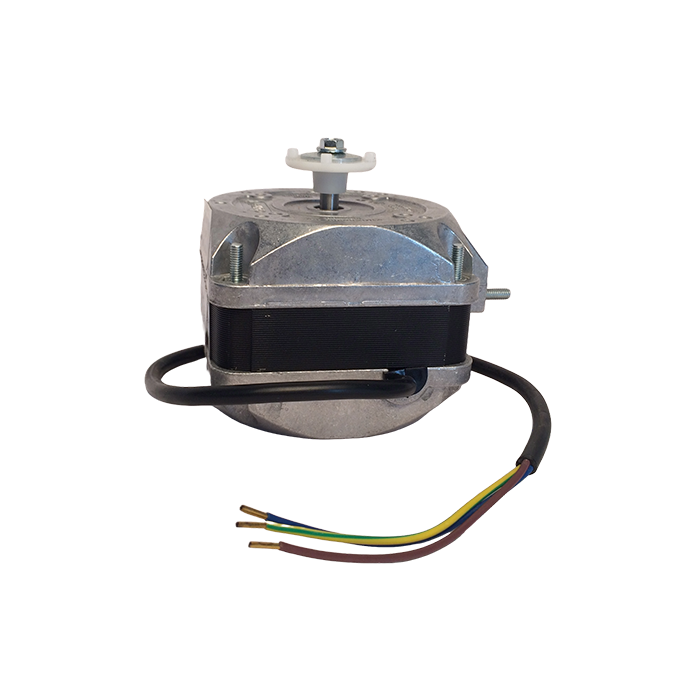

Fan Motor Assy Ø230mm
In stock
- What machine we are using : ELRD,2KD,2KD 7,2KD G,3GW,3GX
- Brand of machine: GEM
- Model number of the machine : ELRD 20,ELRD 40,2KD 130,2KD7 40,2KD7 60,2KD7 100,2KD7 150,3GW 20,3GW 40,3GX 150,3GX 200
- Item part number: 600066
- Other Brand name if any:EBM
Availability : 37 Available in in 2-3 weeks
| Motor Type | Ambient Temp | Mounting Type | Insulation | Direction of Rotation | Speed | No. of Blades | Reference standard | Fan Dia | Pitch angle | Motor overall Dim. | Connection | Electrical Spec |
| Shaded pole | -30 to 40°C | Horizontal | B class | Counter Clockwise | 1300 RPM | 5 | VDE 0700/EN 60335-1 | Ø230mm | 28° | 83x83x81mm (LxHxW) | Electric supply : 230V 50Hz 1Ø Rated Power input : 36W Rated current : 0.25A Voltage : 230V |
