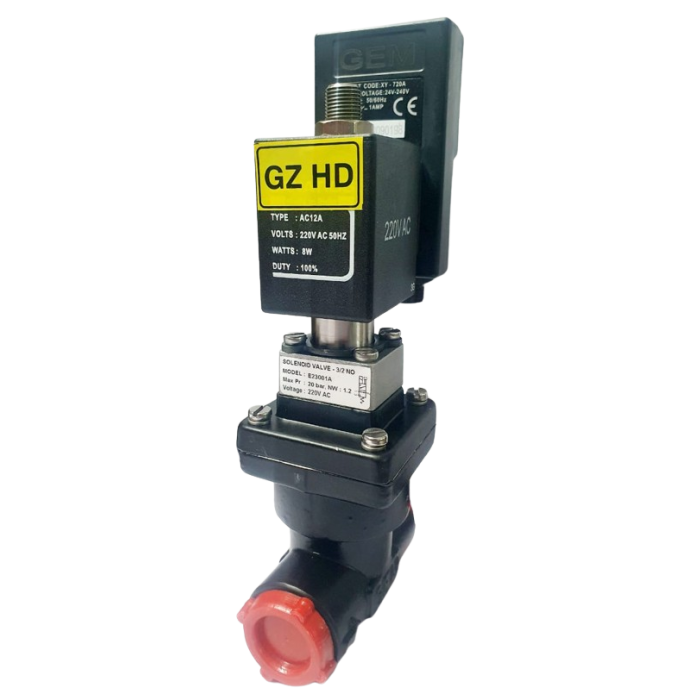

Automatic Drain Valve, 1/2" GZHD

In stock
Login To See Price
  • What machine we are using : ELRD,2KD,3G VFD,3GX
  • Brand of machine: GEM
  • Model number of the machine : ELRD 300,ELRD 400,ELRD 500,ELRD 600,ELRD 750,ELRD 1100,ELRD 1254,ELRD 1552,ELRD 1750,ELRD 2000,ELRD 2500,2KD CC 750,2KD CC 1000,2KD 1250,2KD CC 1500,2KD CC 2000,2KD CC 2500,3GX 300,3GX 500,3GX 1000
  • Item part number: 600178
  • Other Brand name if any:GEM

Availability : 19 Available in in 2-3 weeks

Valve operating intervalValve dischargePower ConsumptionMax. Operating PressureMax. Operating tempOrificeTypeMax discharge @ 7 barConnectionElectrical Spec
0.5 to 35 mins (adjustable)0.5 to 20 sec (adjustable)10W16 bar(g)90°C6mmPilot operated150Liter/hour1/2" BSP(F)
