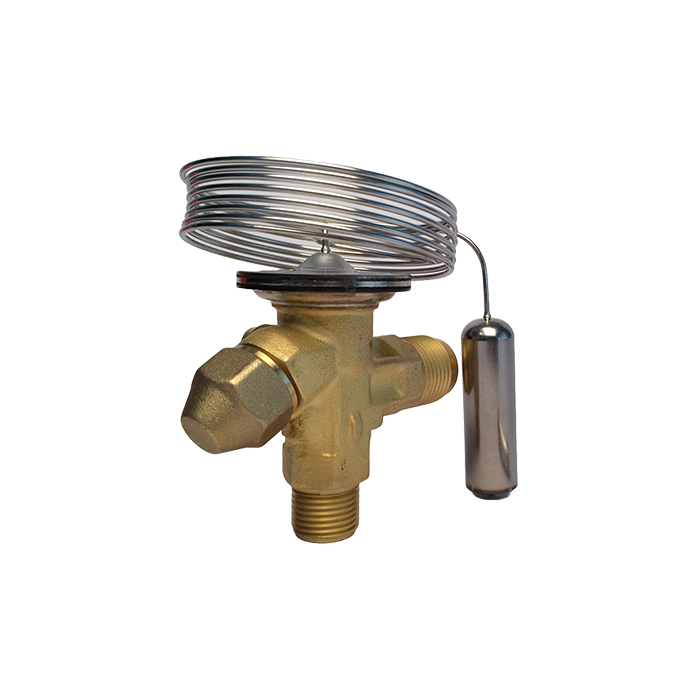

Expansion Valve TEN 2 With Orifice T2 NO 5
Login To See Price
In stock
SKU
600388
- What machine we are using : ELRD,2KD,2KD 7
- Brand of machine: GEM
- Model number of the machine : ELRD 400,ELRD 500,ELRD 600,ELRD 750,2KD CC 400,2KD7 075,2KD7 100
- Item part number: ELRD 400,ELRD 500,ELRD 600,ELRD 750,2KD CC 400,2KD7 075,2KD7 100
- Usage:Regulate Refrigerant Flow, Pressure Reduction, Facilitate Heat Absorption, Prevent Flooding of the Evaporator, Temperature Control
- Other Brand name if any:
| Body material | Capillary tube length | connection material | Direction | Max. Working Pressure | Pressure equalization | Static superheat | Superheat setting | Temp range | Flow direction | Connection | Electrical Spec |
| Brass | 1500mm | Brass | angleway | 34 bar | externally | 4°C | Adjustable | -40 to 10°C | Biflow with orifce 01-05 | Inlet : 3/8", Flare Outlet : 1/2", Flare Equalization : 1/4", Flare |
