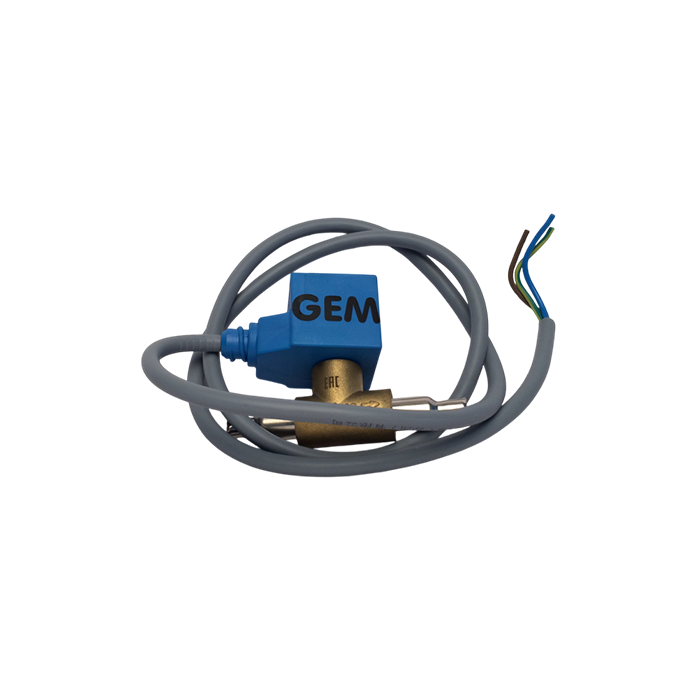

Solenoid Valve, EVU 2, Solder 1/4"
In stock
- What machine we are using : ELRD,2KD,2KD 7,2KD CC
- Brand of machine: GEM
- Model number of the machine : ELRD 20,ELHD 20,ELHD 40,ELRD 64,2KD7 40,2KD7 60,2KD7 80,2KD7 100,2KD7 150,2KD 60 G,2KD 80 G,2KD 100 G,2KD 130 G ,2KD 150 G,2KD 200 G,2KD CC 40,2KD 60 CC,2KD 80 CC,2KD 100 CC,2KD 150 CC,2KD 200 CC
- Item part number: 600145
- Other Brand name if any:DANFOSS
Availability : 5 Available in in 2-3 weeks
| Type | Temp. Medium | Max. Working Pressure | Kv value | Function | Type code | Amb. Temp | Cable IN/m | Coil Conn. | Coil Fastening | Conductor Area | Actuator Size | Rel. Humi | Enclosure rating | Dimensions | Connection | Electrical Spec |
| EVU 2 | -40 to 105°C | 70 Bar | 0.2m³/h | NC | AU230CS | -40 to 50°C | 40"/1m | Cable | Clip-on | 3x0.75mm² | 9mm | 0-100% | IP67 | 86x19x63.5mm(LxWxH) | 1/4" x 1/4", Solder | Electrical connector : 3 core cable Frequency : 50/60Hz Power consumption @50hz : 7W,14VA,230V @60hz : 5W,10VA,230V |
